High-Strength Steel Wire For Reinforcement Cage Manufacturer
Engineered specifically for automatic pile cage welding machines. YaDa supplies ultra-consistent cold drawn plain and ribbed steel wire for secure resistance welds, smooth machine feeding, reduced wire snapping, and reliable structural rigidity in deep foundation piles and precast concrete.
Optimized Steel Wire for Automatic Pile Cage Making Machines
In modern foundation construction, reinforcement cages are produced by automatic rotary resistance welding machines. If the wire has unstable diameter, dirty surface, or inconsistent hardness, your line may suffer from wire snapping, weak welds, missed welds, electrode wear, and costly downtime.
YaDa manufactures cold drawn steel wire for reinforcement cage production with stable mechanical performance, clean surface condition, and smooth coil feeding — helping precast concrete and piling factories keep their cage welding machines running continuously.
Designed to solve the real problems on automatic reinforcement cage lines:
- Stable feeding through straightening, bending, and spiral wrapping rollers.
- Reliable resistance spot welding performance for pile cage and concrete reinforcement cage manufacturing.
- Consistent tensile strength to support rigid cage structure during lifting and installation.
Clean Surface for Stable Resistance Spot Welding
Controlled surface cleanliness helps reduce oxide scale, heavy grease, and contamination. This supports better electrical conductivity, more stable weld points, and lower copper electrode wear on automatic cage welding equipment.
Consistent Diameter for Smooth Coil Feeding
Stable diameter control allows the steel wire to pass through feeding guides, straightening wheels, and bending rollers without jamming. It is suitable for cold drawn wire for reinforcement cage and spiral stirrup production.
Unbreakable Spiral Performance Under Machine Tension
YaDa’s controlled cold drawing process improves strength consistency along the coil, helping spiral wire and stirrup wire resist snapping during high-speed rotary cage forming, welding, and continuous pulling tension.
Tell us your required diameter, wire type, coil weight, and cage welding machine model. Factory direct support from YaDa.
Specific Steel Wire Options For Reinforcement Cage Manufacturing
YaDa supplies cold drawn steel wire for reinforcement cage factories that need stable feeding, consistent diameter, reliable resistance spot welding performance, and enough mechanical strength for pile cage lifting, handling, and concrete pouring.

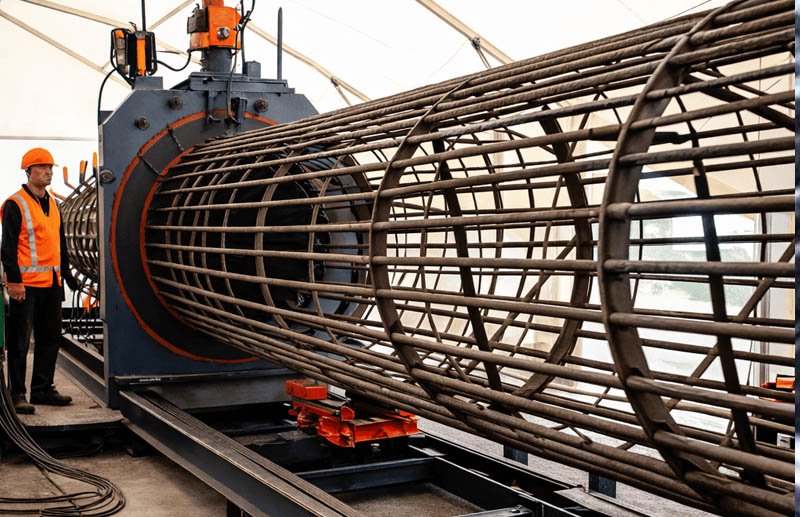

Plain Cold Drawn Steel Wire For Cage Spirals
Bright and highly consistent plain cold drawn steel wire is ideal for standard pile cage spirals and stirrup wrapping. Its stable diameter helps automatic pile cage making machines feed smoothly, while controlled tensile strength supports crane lifting forces without easy cage deformation.
- Diameter range: 4.0mm - 12.0mm, produced according to project requirements.
- Tensile strength: designed to specification for pile cage rigidity and safe handling.
- Machine compatibility: clean surface and stable coil pay-off for automatic cage welding lines.

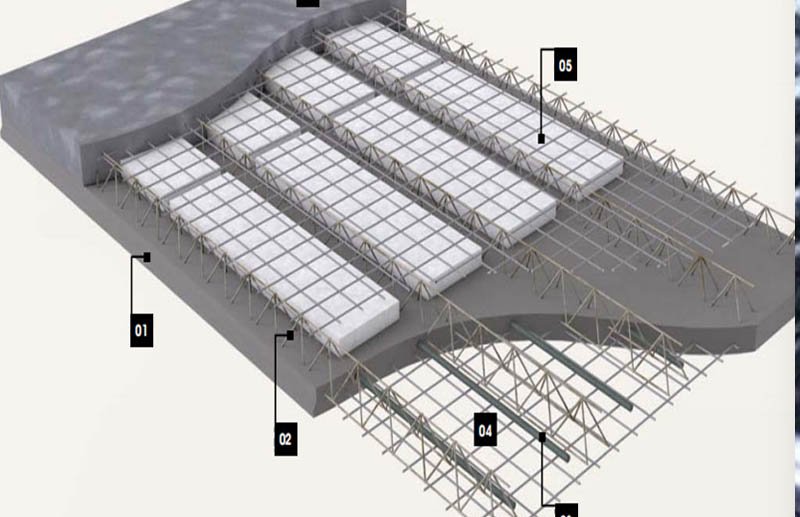

Cold Rolled Ribbed Wire For Superior Concrete Bond
Cold rolled ribbed wire for reinforcement cage production features precise surface ribs that improve mechanical anchorage between steel and poured concrete. It is suitable for pile cages requiring higher bond performance, stronger structural grip, and reliable load transfer in demanding foundation projects.
- Rib profile: controlled rib geometry for improved concrete bonding and anchorage.
- Yield strength: manufactured to meet local construction code and engineering drawings.
- Production stability: consistent diameter and mechanical properties help reduce cage line adjustment.
Why Our Steel Wire For Reinforcement Cage Maximizes Concrete Production Efficiency
YaDa manufactures cold drawn steel wire for reinforcement cage production with stable diameter, consistent tensile strength and a clean surface engineered for automatic pile cage welding machines and precast concrete factories.
Jumbo Coils for Zero Downtime
Heavy wire coils reduce frequent coil changing and joint welding during pile cage production. Your automatic cage welding machine can run longer, with fewer stops and more stable output per shift.
Up to 1000kg+ coil optionsElectrode Saving Clean Surface
Clean, oxide-controlled wire surface supports stable resistance spot welding on automated cage lines. It helps reduce weak welds, electrode contamination and unnecessary copper electrode wear.
Cleaner welding contactRigid Cage Structure During Lifting
Consistent cross-sectional area, yield strength and tensile performance help the reinforcement cage maintain its cylindrical shape during crane lifting, concrete pouring and vibratory compaction.
Designed for pile cage rigidityStable Diameter for Automatic Feeding
Precise cold drawing keeps the wire diameter consistent, so the spiral wire feeds smoothly through straightening rollers, bending rollers and welding stations without jamming or sudden snapping.
Smooth cage machine compatibilitySteel Wire For Reinforcement Cage Applications in Precast Concrete and Foundation Projects
YaDa supplies cold drawn steel wire for reinforcement cage manufacturing across high-volume infrastructure projects. Whether your plant produces bored pile cages, concrete pole cages or concrete pipe reinforcement cages, our wire is engineered for stable feeding, reliable resistance spot welding and strong structural rigidity.
Steel Wire for Bored Pile Reinforcement Cage
For deep foundation piling projects, cold drawn wire is used as spiral wrapping or stirrup wire around main rebars. Stable tensile strength helps the cage resist deformation during lifting and installation into the pile hole.
- Suitable for bored pile and drilled shaft cage production
- Stable diameter for automatic pile cage making machines
- Strong cage rigidity during crane lifting and concrete pouring
Ribbed Steel Wire for Concrete Pile Reinforcement Cage
Ribbed cold drawn wire improves mechanical anchorage between the reinforcement cage and concrete. It is widely selected when project specifications require higher bond performance for load-bearing precast or cast-in-place piles.
- Enhanced concrete bond with precise rib geometry
- Reliable option for high-load foundation reinforcement
- Consistent mechanical properties for batch production

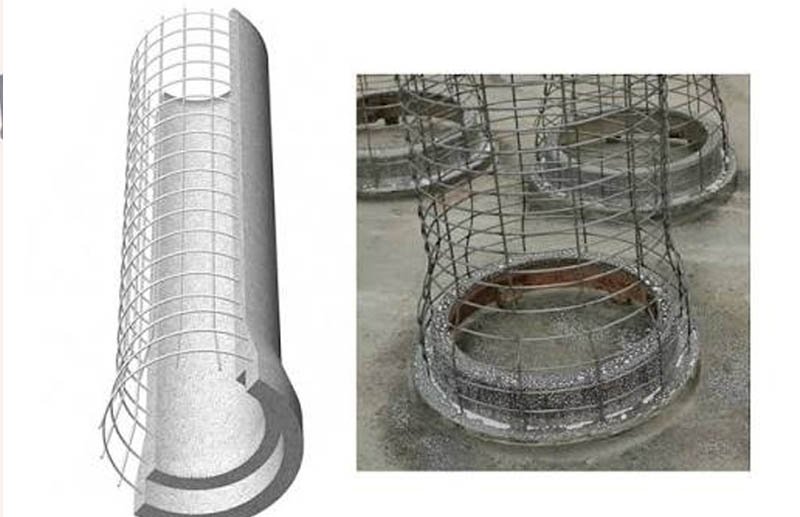

Steel Wire for Concrete Pipe and Precast Cage Reinforcement
For concrete drainage pipes, spun concrete products and precast structural components, YaDa wire supports continuous cage forming with clean surface quality and stable wire feeding on automated equipment.
- Used for inner and outer concrete pipe reinforcement cages
- Supports precast concrete plants with repeatable production
- Available in plain or ribbed cold drawn wire specifications
Supporting Diverse Infrastructure Reinforcement Projects
From pile foundations and concrete poles to concrete pipe cages, the key requirement is not only wire strength. Your production line also needs stable diameter, clean surface, predictable ductility and coil packaging that matches continuous automated cage manufacturing.
Factory Testing & Quality Assurance for Steel Wire For Reinforcement Cage
As a direct cold drawn steel wire manufacturer, YaDa controls each batch from wire rod selection to final coil inspection. Our quality checks focus on what reinforcement cage producers care about most: stable feeding, reliable resistance spot welding, lifting rigidity and consistent mechanical performance.
Tensile Strength & Yield Point Testing for Reinforcement Cage Wire
Each production batch is tested for tensile strength and yield performance to help the finished pile cage maintain structural rigidity during crane lifting, cage positioning, concrete pouring and vibratory compaction.
Bending and Wrapping Tests for Spiral Wire and Stirrups
Reinforcement cage spiral wire must bend around main rebars without cracking or sudden breakage. YaDa checks ductility and wrapping performance so the wire can run smoothly on automatic pile cage making machines.
Stable Diameter Checks for Automatic Cage Welding Machines
Diameter inconsistency can cause feeding jams, roller slippage and unstable weld points. We inspect wire diameter and surface condition to support continuous production on high-speed reinforcement cage welding lines.

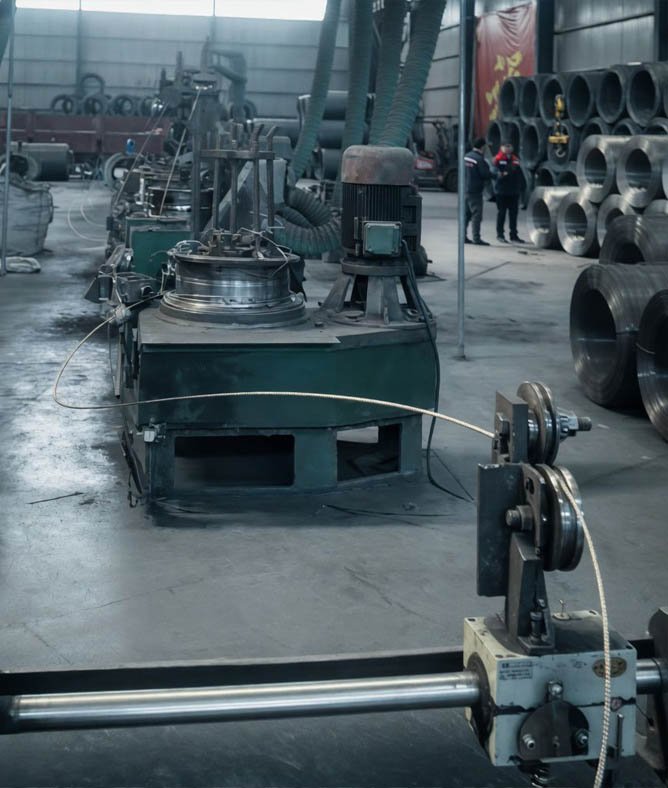

Batch Traceability from Wire Rod to Export Coil
Every order is managed by batch records covering raw material, drawing process, coil weight, inspection data and packing details. This helps importers and precast concrete factories maintain consistent long-term supply quality.
Frequently Asked Questions About Steel Wire For Reinforcement Cage
Clear answers for precast concrete plants, piling contractors and reinforcement cage manufacturers choosing cold drawn steel wire for automatic pile cage welding machines, spiral wrapping and concrete pile reinforcement.
What wire diameters are commonly used for reinforcement cage spirals and pile cage stirrups?
For most reinforcement cage and concrete pile cage applications, cold drawn plain or ribbed steel wire is commonly supplied in the 4.0mm to 12.0mm range. In many pile cage spiral wrapping applications, 5.0mm, 6.0mm, 8.0mm and 9.0mm are frequently requested.
The final diameter should be selected according to pile diameter, cage length, concrete structure design and local engineering requirements.
Why does normal wire break on my automatic pile cage welding machine?
Wire breakage is usually caused by unstable mechanical properties, uneven diameter, hard and soft spots, poor coil winding or surface defects. When the wire passes through straightening rollers, bending rollers and the rotating cage machine under tension, these inconsistencies can lead to snapping and machine stoppage.
YaDa’s cold drawn wire for reinforcement cage manufacturing is controlled for stable diameter, consistent tensile strength and smooth feeding performance, helping reduce production interruptions.
Can YaDa supply jumbo coils for steel wire for reinforcement cage production?
Yes. For automated precast concrete plants and piling cage production lines, larger coil weight is important because it reduces coil changing, wire joints and downtime. YaDa can discuss heavy coil packaging based on your machine pay-off system, container loading plan and wire diameter.
If you are using an automatic cage welding machine, please tell us your preferred coil weight, inner diameter, outer diameter and handling method.
Should I choose plain cold drawn steel wire or ribbed steel wire for concrete reinforcement cage?
Plain cold drawn steel wire is often selected for standard spiral wrapping where smooth feeding and stable machine operation are priorities. Ribbed steel wire is preferred when stronger mechanical anchorage with concrete is required.
For concrete pile reinforcement cage projects, the choice depends on structural design, bonding requirements, local codes and the capability of your cage making equipment.
How does clean surface steel wire improve resistance welding performance on cage machines?
In automatic reinforcement cage production, the wire is welded to longitudinal rebars through resistance spot welding. Heavy rust, scale, oil contamination or unstable surface condition can cause weak welds, missed welds, electrode blackening and excessive electrode wear.
YaDa controls wire surface quality to support more stable electrical contact and smoother automated production.
What information should I provide to get a quotation for cold drawn wire for reinforcement cage?
To recommend the right steel wire for pile cage or concrete reinforcement cage manufacturing, please provide:
- Wire type: plain cold drawn wire or ribbed steel wire
- Diameter and tolerance requirement
- Tensile strength or yield strength target
- Coil weight, coil size and packaging preference
- Automatic cage welding machine type and monthly consumption
Send your diameter, coil weight, strength requirement and cage welding machine details. Our factory team will help you match a suitable cold drawn wire solution for continuous reinforcement cage production.
