Premium Chrome Plated Hydraulic Cylinder Rod Manufacturer
Delivering precision ground, polished, and hard chrome plated steel rods for high-performance hydraulic cylinders. From CK45 to 4140, we provide factory-direct solutions with f7 tolerance and superior anti-corrosion properties.
- Chrome micro-defects that cut seals during reciprocating movement
- Rust and coating failure in marine, mud, and construction environments
- Poor straightness causing rod buckling and hydraulic leakage
Solving the Leading Causes of Hydraulic Cylinder Failure
In the hydraulic industry, your cylinder is only as good as its piston rod. Imperfections in straightness or micro-defects on the chrome surface directly cause seal wear leading to catastrophic hydraulic fluid leaks. YaDa’s precision rods are engineered to eliminate these risks.
Zero Seal Damage from Precision Ground Chrome Plated Rods
Precision centerless grinding followed by advanced polishing achieves a micro-finish of Ra 0.1 - 0.2 µm, ensuring optimal seal life and preventing hydraulic fluid leakage.
Maximum Corrosion Resistance with Uniform Hard Chrome Plating
Uniform hard chrome plating ensures exceptional resistance to rust, even in harsh marine or construction environments. NSS tests up to 120+ hours are available for demanding applications.
High Yield Strength to Prevent Hydraulic Piston Rod Buckling
Utilizing premium cold drawn steel and optimal heat treatment helps prevent rod buckling under heavy load operations, especially for CK45, 1045, 4140, and SCM440 hydraulic cylinder rods.
Choose the Right Chrome Plated Piston Rod for Your Cylinders
Different hydraulic applications require different rod structures. YaDa Metal manufactures both standard hard chrome plated steel rods and induction hardened chrome plated rods, helping cylinder makers match cost, impact resistance, corrosion resistance, and service life.

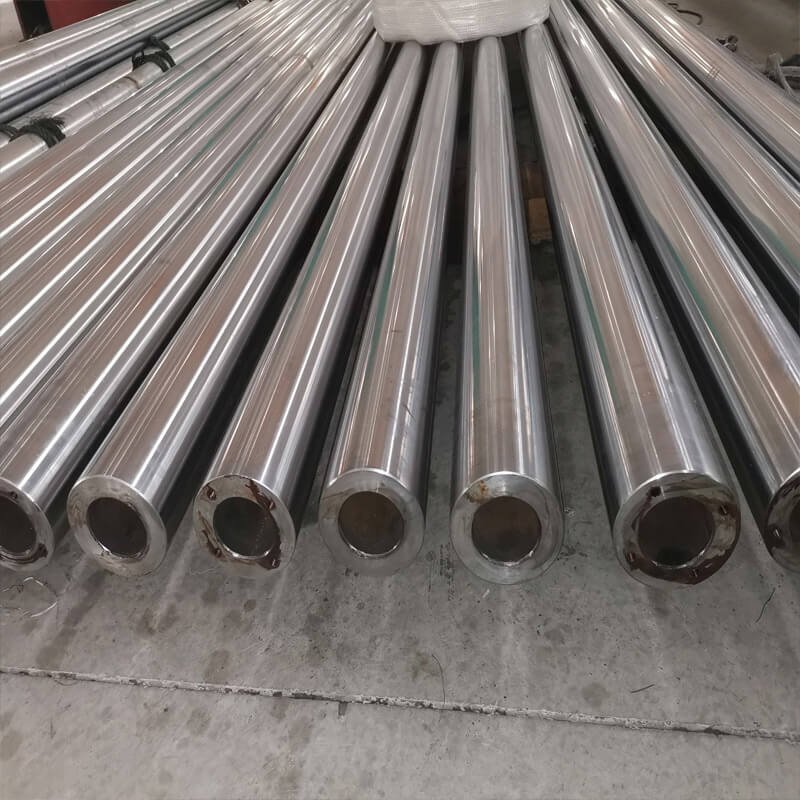

Hard Chrome Plated Steel Rod (Standard)
Base material, usually 1045 / CK45, undergoes precision grinding and hard chrome plating. This solution is ideal for standard agricultural machinery, lifting equipment, industrial cylinders, and generic hydraulic cylinders where smooth sealing and stable anti-corrosion performance are required.
- Cost-effective choice for standard-duty hydraulic cylinder production.
- Precision ground and polished surface helps reduce seal wear and leakage.
- Suitable for CK45 chrome plated piston rod and 1045 chrome plated rod requirements.
Induction Hardened Chrome Plated Rod
Before plating, the steel rod undergoes induction hardening to achieve a surface hardness of HRC 55-60. This creates an armor-like outer layer against impact and severe scratching, making it the ultimate choice for excavators, mining equipment, and heavy construction machinery.
- Stronger resistance against dents, stone impact, and severe scratching.
- Helps protect seals when cylinders operate in harsh outdoor environments.
- Recommended for 4140 chrome plated rod and high-stress hydraulic piston rod projects.
| Selection Factor | Hard Chrome Plated Steel Rod | Induction Hardened Chrome Plated Rod |
|---|---|---|
| Typical Steel Grade | CK45, 1045, C45E | 4140, SCM440, 42CrMo4, CK45 with hardening |
| Main Purpose | Standard hydraulic cylinders requiring smooth surface and corrosion resistance | Heavy-duty cylinders requiring impact resistance and higher surface hardness |
| Recommended Applications | Agricultural machinery, lifts, industrial equipment, general hydraulic systems | Excavators, construction machinery, mining equipment, high-load hydraulic systems |
| Buyer Benefit | Reliable sealing performance with balanced production cost | Reduced risk of impact dents, scratches, seal damage, and premature cylinder failure |
Technical Specifications of Our Chrome Plated Rods
For hydraulic cylinder OEMs, exact rod specifications decide sealing life, corrosion resistance, and long-term cylinder reliability. YaDa Metal supplies chrome plated hydraulic cylinder rods with controlled steel grades, diameter tolerance, surface roughness, chrome hardness, and straightness.
| Steel Material Grades |
Carbon Steel: SAE 1045, CK45, C45E. Alloy Steel: 4140, SCM440, 42CrMo4.
CK45 chrome plated rod
1045 chrome plated rod
4140 chrome plated rod
|
|---|---|
| Diameter Range | Ø 6mm to Ø 120mm, with stock lengths or cut-to-length supply according to hydraulic cylinder drawings and production plans. |
| Diameter Tolerance | ISO f7, f8, or highly customized specifications for OEM hydraulic piston rod requirements. |
| Surface Roughness | Ra ≤ 0.2 µm. Precision ground and polished chrome plated rods help reduce seal wear and hydraulic fluid leakage. |
| Chrome Layer Thickness | 20 µm ± 5 µm, or customized up to 50 µm for marine, construction machinery, and high-corrosion environments. |
| Chrome Surface Hardness | Minimum HV 850, with HV 900+ target available depending on application and customer specification. |
| Straightness | ≤ 0.2 mm/m, ensuring better alignment during cylinder assembly and helping prevent rod buckling under operating load. |
In-House Ground and Polished Chrome Plated Rod Production
Many suppliers simply buy finished rods. At YaDa Metal, we control the entire workflow from raw cold drawn steel bar preparation to centerless grinding, polishing, and hard chrome plating. This in-house production model helps hydraulic cylinder OEMs receive stable mechanical properties, consistent surface finish, and reliable factory direct supply.
Cold Drawn Steel Bar Peeling and Raw Material Control
We start with selected cold drawn steel bars such as CK45, 1045, 4140, SCM440, and 42CrMo4. Peeling and raw material inspection help remove surface defects before the hydraulic piston rod enters precision finishing.
Continuous Centerless Grinding for Diameter Tolerance
Continuous centerless grinding improves diameter consistency, roundness, and straightness. This process is essential for producing ground and polished chrome plated rods with ISO f7 or f8 tolerance.
Advanced Polishing for Ra ≤ 0.2 µm Surface Roughness
Polishing creates a smooth, seal-friendly surface that helps reduce micro-scratches, seal wear, and hydraulic fluid leakage. This is critical for chrome plated hydraulic cylinder rods used in repeated reciprocating motion.
Hard Chrome Plating for Corrosion and Wear Resistance
The hard chrome plating process builds the final anti-corrosion and wear-resistant layer. YaDa can support standard chrome thickness or customized options for marine, construction machinery, and heavy-duty hydraulic environments.
Rigorous Testing for Heavy-Duty Application Reliability
For hydraulic cylinder manufacturers, inspection is not a formality—it directly affects seal life, corrosion resistance, and rod safety under load. YaDa Metal verifies critical parameters of each chrome plated hydraulic cylinder rod, including NSS corrosion resistance, internal material integrity, and f7 diameter tolerance.
Salt Spray Test (NSS) for Chrome Plated Rod Corrosion Resistance
Evaluating corrosion resistance according to ISO 9227. Test durations such as 72h / 96h / 120h can be applied depending on order requirements, with Rating 9 targets available for demanding hydraulic environments.
- Verifies hard chrome plating performance in wet, marine, and construction environments.
- Helps reduce premature rust, pitting, chrome layer failure, and seal damage.
Ultrasonic Flaw Detection for 4140 Chrome Plated Rods
Ultrasonic inspection helps ensure zero critical internal cracks in the alloy steel matrix. This is especially important for 4140 chrome plated rods, SCM440 rods, and hydraulic piston rods used under heavy load and high stress.
- Reduces the risk of hidden steel defects before grinding, polishing, and chrome plating.
- Supports heavy-duty cylinder reliability for excavators and construction machinery.
Laser Diameter Measuring for f7 Hydraulic Piston Rod Tolerance
Diameter measuring is used to monitor the f7 tolerance across the chrome plated hydraulic piston rod length, supporting consistent cylinder assembly, stable sealing pressure, and reduced rework for OEM production.
- Confirms diameter consistency after precision grinding, polishing, and hard chrome plating.
- Helps prevent assembly problems caused by oversize, undersize, or inconsistent rod diameter.
FAQs About Chrome Plated Hydraulic Cylinder Rods
These answers help hydraulic cylinder OEMs, repair companies, and industrial buyers choose the right chrome plated hydraulic cylinder rod, including CK45, 1045, 4140, induction hardened rods, tolerance, chrome thickness, testing, machining, and export packing.
What is the difference between CK45 and 4140 chrome plated rods?
CK45 / 1045 is a versatile carbon steel suitable for standard hydraulic cylinders, agricultural machinery, lifting equipment, and general industrial use. 4140 / SCM440 is a durable alloy steel with higher strength and better toughness, making the 4140 hard chrome plated rod a better choice for heavy loads, shock, and high-stress applications such as excavator cylinders.
Why do I need an induction hardened chrome plated rod?
If your hydraulic cylinder operates in environments with flying rocks, debris, side impact, or severe scratching risk, standard chrome may be dented. Induction hardening hardens the steel layer underneath the chrome, providing stronger impact resistance and helping prevent seal-destroying scratches. It is recommended for excavators, loaders, mining machinery, and heavy construction equipment.
Can you supply custom lengths and machining based on OEM drawings?
Yes. As a direct hydraulic cylinder rod manufacturer in China, YaDa Metal can supply raw stock lengths, cut-to-length rods, and custom machining according to your OEM drawings. Please provide diameter, total length, tolerance, chamfer, thread, step, hole, chrome thickness, steel grade, and annual demand when requesting a quotation.
What diameter tolerance and surface roughness can you control?
Common hydraulic piston rod tolerance is ISO f7 or f8, depending on diameter and cylinder design. For surface finish, YaDa Metal typically targets Ra ≤ 0.2 µm after precision grinding and polishing. These controls help improve seal contact, reduce leakage risk, and support smoother cylinder movement.
How should I choose chrome layer thickness for hydraulic cylinder rods?
A common chrome layer thickness is 20 µm ± 5 µm for standard hydraulic applications. For marine, outdoor, construction machinery, or high-corrosion environments, thicker chrome layers can be considered, such as customized requirements up to 50 µm. The right choice depends on corrosion exposure, working pressure, seal type, and expected service life.
What tests are important before buying chrome plated hydraulic cylinder rods?
Important checks include diameter tolerance, straightness, surface roughness, chrome layer thickness, chrome surface hardness, visual inspection, and packing protection. For demanding applications, buyers may request salt spray testing according to ISO 9227, ultrasonic flaw detection for alloy steel rods, and additional dimensional inspection records.
Do 4140 chrome plated rods need ultrasonic flaw detection?
For heavy-duty hydraulic cylinders, ultrasonic flaw detection is highly recommended for 4140 chrome plated rods, SCM440 rods, and other alloy steel piston rods. It helps identify critical internal defects before final processing, reducing risk when the rod works under high load, impact, or repeated stress.
How do you protect chrome plated rods during sea shipment?
Export packing must protect the chrome surface from moisture, collision, and abrasion. YaDa Metal can use anti-rust oil, protective wrapping, bundled packing, end protection, and strong export packaging according to order size and shipping route. Proper packaging helps prevent rust marks, scratches, and handling damage before the rods reach your warehouse.
Can you provide inspection records or material documents with the order?
Yes. Depending on the agreed order requirements, YaDa Metal can provide relevant inspection information such as material grade reference, dimensional inspection, surface inspection, chrome thickness check, hardness check, and packing details. If your project requires specific documents, please list them clearly before production confirmation.
What is the difference between a chrome plated rod and a cold drawn steel bar?
A cold drawn steel bar is mainly used as a precision steel raw material for machining, shafts, fasteners, and mechanical parts. A chrome plated hydraulic cylinder rod is further processed by precision grinding, polishing, and hard chrome plating to achieve a smooth, hard, corrosion-resistant surface suitable for hydraulic cylinder sealing and reciprocating movement.
What information should I send to get an accurate quotation?
To receive an accurate quotation, please send:
- Steel grade, such as CK45, SAE 1045, 4140, SCM440, or 42CrMo4.
- Diameter, length, tolerance, and straightness requirement.
- Chrome thickness, surface roughness, and hardness requirement.
- Standard or induction hardened chrome plated rod requirement.
- Machining drawing, quantity, packing requirement, and destination port.
Request a Quote for Your Hydraulic Cylinder Rods
Tell us your required steel grade, tolerance, and operating environment. Our heavy-duty engineering team will provide a highly competitive factory-price proposal within 12 hours.
Custom Tolerances
Achieve ISO f7/f8 diameter precision and Ra ≤ 0.2µm finish for zero-leak sealing.
Quick Engineering Review
Upload your drawing securely, and our engineers will verify the optimal rod material & plating.
Get Your B2B Pricing Proposal
Prepare your specifications. We evaluate everything to ensure perfect cylinder matching:
- Rod Type (Standard Chrome / Induction Hardened)
- Steel Material Grade (CK45, 1045, 4140, etc.)
- CAD Drawings & Tolerance Specs (Optional)
